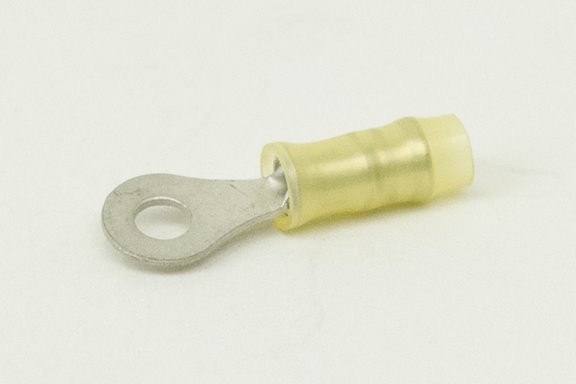

MS25036-143 to -151,
Size 26 to 18

Type:	Class 1 Insulated Terminals
Insulation:	Nylon, UL 94V-2
Terminal Body & Sleeve:	Copper, ASTM B-152
Plating:	Tin, ASTM B-545
Max Temp Rating:	105° C

AWG	WIRE SIZE (MM)	TERMINAL P/N	HX3 DIE (MIL-APPROVED)	HX4 DIE (MIL-APPROVED, MULTI CAVITY)	HX4 DIE (MIL-APPROVED, SINGLE CAVITY)	HX4 DIE (SINGLE CAVITY)	M22520/40-01 TOOL (MIL- APPROVED)
#26-24	0.12-0.24	MS25036-143	X511	Y501	Y1115*	Y672	AMT4001
#26-24	0.12-0.24	MS25036-144	X511	Y501	Y1115*	Y672	AMT4001
#26-24	0.12-0.24	MS25036-145	X511	Y501	Y1115*	Y672	AMT4001
#26-24	0.12-0.24	MS25036-146	X511	Y501	Y1115*	Y672	AMT4001
#26-24	0.12-0.24	MS25036-147	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	MS25036-148	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	MS25036-149	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	MS25036-150	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	MS25036-151	X511	Y501	Y1115*	Y672	AMT4001

* QPL in Progress.

* Die set includes insulation adjustment feature.

AWG	TERMINAL P/N	BURNDY	HOLLINGSWORTH	MOLEX	PANDUIT	T&B	TYCO	TYCO
#26-24	MS25036-143	–	XR26336 N	–	–	RAX23	54310-1	–
#26-24	MS25036-144	–	XR26337 N	–	–	RAX43	52189	–
#26-24	MS25036-145	–	XR26338 N	–	–	RAX63	53073	–
#26-24	MS25036-146	–	XR26339 N	–	–	RAX83	54311-1	–
#26-24	MS25036-147	–	XR26340 N	–	–	RAX103	54321-1	54312-1
#22-18	MS25036-148	YAES18-N48	XR1880 SN	AA-820-04	PN18-4RN	RA323	31880	320553
#22-18	MS25036-149	YAES18-N49	XR1890 SN	AA-821-08	PN18-8R	RA863	31890	320551
#22-18	MS25036-150	YAES18-N50	XR1894 SN	AA-822-14	PN18-14R	RA713	31894	320571
#22-18	MS25036-151	–	–	–	–	RA753	328975	–

NOTE: Component OEM’s instructions shall take precedence over the information presented in these charts. Wire ranges are for reference only
