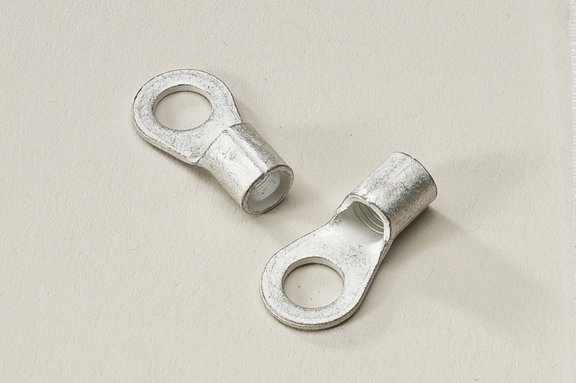

MS20659-125 to -128,
Sizes 22 to 10
| Type: | Class 1 Uninsulated Terminals, Ring Tongue |
|---|---|
| Insulation: | N/A |
| Terminal Body & Sleeve: | Copper, ASTM B-152 |
| Plating: | Tin, ASTM B-545 |
| Max Temp Rating: | 175° C |
| AWG | WIRE SIZE (MM) | TERMINAL P/N | HX4 DIE (MULIT-CAVITY, 1 INDENT) | HX4 DIE (MULTI-CAVITY, 2 INDENTS) | GMT SERIES TOOL (MIL-APPROVED, 1 INDENT) | GMT SERIES TOOL (2 INDENTS) |
|---|---|---|---|---|---|---|
| #22-18 | 0.26-0.96 | MS20659-125 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS20659-126 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS20659-127 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS20659-128 | Y554 | Y788 | GMT277 | GMT1005 |
Note: Terminals with optional insulation support must use Y554 or GMT277. The Y788 and GMT1005 are not applicable for terminals with optional insulation support.
| AWG | TERMINAL P/N | BURNDY | HOLLINGSWORTH | MOLEX | PANDUIT | T&B | TYCO |
|---|---|---|---|---|---|---|---|
| #22-18 | MS20659-125 | – | – | – | – | – | – |
| #16-14 | MS20659-126 | – | – | – | – | – | – |
| #16-14 | MS20659-127 | – | – | – | – | – | – |
| #12-10 | MS20659-128 | YAV10-T4 | R3220B | C-340-38 | P10-38R | C73 | 33220 |
NOTE: Component OEM’s instructions shall take precedence over the information presented in these charts. Wire ranges are for reference only
