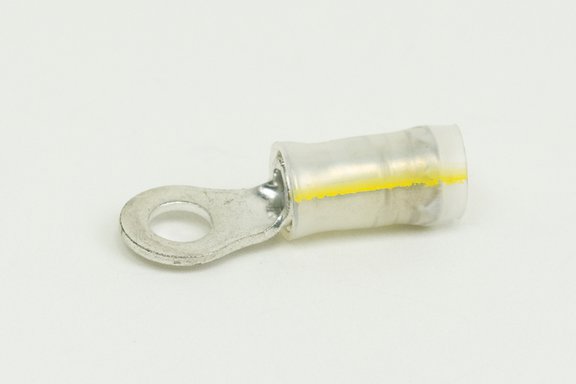

M7928/4-111 to -114,
Sizes 12 to 10
| Type: | Class 1 Insulated Terminals, Radiation Resistent |
|---|---|
| Insulation: | Polyvinylidene Fluoride (PVF2) |
| Terminal Body & Sleeve: | Copper, ASTM B-152 |
| Plating: | Tin, ASTM B-545 |
| Max Temp Rating: | 105° C |
| AWG | WIRE SIZE (MM) | TERMINAL P/N | HX3 DIE (MIL-APPROVED) | HX4 DIE (MIL-APPROVED, MULTI CAVITY) | HX4 DIE (MIL-APPROVED, SINGLE CAVITY) | HX4 DIE (SINGLE CAVITY) |
|---|---|---|---|---|---|---|
| #12-10 | 2.62-6.64 | M7928/4-111 | X515 | Y501 | Y1117* | Y670 |
| #12-10 | 2.62-6.64 | M7928/4-112 | X515 | Y501 | Y1117* | Y670 |
| #12-10 | 2.62-6.64 | M7928/4-113 | X515 | Y501 | Y1117* | Y670 |
| #12-10 | 2.62-6.64 | M7928/4-114 | X515 | Y501 | Y1117* | Y670 |
* QPL in Progress.
* Die set includes insulation adjustment feature.
| AWG | TERMINAL/SPLICE P/N | BURNDY | HOLLINGSWORTH | MOLEX | PANDUIT | T&B | TYCO |
|---|---|---|---|---|---|---|---|
| #12-10 | M7928/4-111 | – | – | – | – | – | 53423-1 |
| #12-10 | M7928/4-112 | – | – | – | – | – | 53425-1 |
| #12-10 | M7928/4-113 | – | – | – | – | – | 53427-1 |
| #12-10 | M7928/4-114 | – | – | – | – | 53428-1 |
NOTE: Component OEM’s instructions shall take precedence over the information presented in these charts. Wire ranges are for reference only
