DMC1663A

SKU: DMC1663A Category: General Purpose Kits

Description

Description

THE WA23 (M2252/23-01) Pneumatic Indent Crimp Tool DMC?s heavy pneumatic indent crimp tool functions with the push of a button for operator ease. This heavy duty crimp tool accommodates large size contacts 8 through 0000 (AWG) and operates on standard 90?125 psi (5.4?8.16 BAR) shop air sources. It is engineered with the operator?s safety in mind and features a full cycle control system. This tool is portable and needs no extra booster for large size contacts. The standard die assembly and positioner are easily interchangeable with no special tool required. Custom dies and positioners may be designed to specific requirements. An optional foot valve is available upon request (P/N WA23FP).

DMC1663 TOOL AND ACCESSORY LIST
MIL P/N	DESCRIPTION	DMC P/N
M22520/23-01	Crimp Tool	WA23
M22520/23-02	Die Assy. 8	WA23-2
M22520/23-03	Die Assy. 6	WA23-3
M22520/23-04	Die Assy. 4	WA23-4
M22520/23-05	Die Assy. 1/0	WA23-5
M22520/23-06	Die Assy. 2/0	WA23-6
M22520/23-07	Die Assy. 4/0	WA23-7
M22520/23-09	Positioner 8	WA23-9
M22520/23-10	Positioner 6	WA23-10
M22520/23-11	Positioner 4	WA23-11
M22520/23-12	Positioner 4, 4N, 4G	WA23-12
M22520/23-13	Positioner 1/0	WA23-13
M22520/23-14	Positioner 1/0, 1/0N	WA23-14
M22520/23-15	Positioner 2/0, 2/0N	WA23-15
M22520/23-16	Positioner 4/0, 4/0N	WA23-16

DMC1663A CONSISTS OF ABOVE TOOLS AND BELOW??

?ADDITIONAL ACCESSORY LIST
MIL P/N	?SIZE	?GO?	?NO-GO?	GAGE P/N
M22520/23-02	8	.130	.136	G693
M22520/23-03	6	.171	.178	G694
M22520/23-04	4	.195	.202	G695
M22520/23-05	1/0	.325	.332	G696
M22520/23-06	2/0	.351	.358	G697
M22520/23-07	4/0	.425	.432	G698

DMC1663 & DMC1663A CONNECTOR?COVERAGE

MANUFACTURER SERIES

MIL-C-5015 Front Release (3400 Series)
MIL-C-5015 Rear Release (3450 Series)
MIL-C-22992 Class L Heavy Duty Cylindrical?Connectors

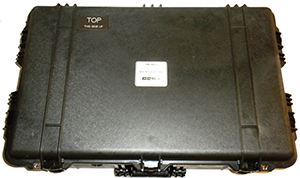

TOOL KIT CONFIGURATION

Type of Case: Portable
Number of Cases: 1
Colour:? Black
Type of Construction: Polyethylene Plastic
Coverage: Mil-Spec Large Size Contacts Size 8 through 0000
Type of Inserts: Unicellular Polyethylene Foam with Die Cut Tool Cavities
