Description
DMC’s General Purpose Insertion and Removal Tool Kit contains metal insertion and removal tools for Mil-Spec Circular Connectors, D-Subminiature Connector, Arinc Connectors and Mil-T-81714 terminal junctions. It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal. The DMC1155 kit supplies your staff with both the information and the tools necessary to assemble and disassemble Mil-Spec Circular Connectors, D-Subminiature Connector, Arinc Connectors and Mil-T-81714 terminal junctions. DMC has cross referenced these tools to the connectors, contacts and terminals, eliminating costly and time-consuming research which would otherwise have to be performed by your electrical technicians. This information is contained in an easy to read tool selection chart. In addition, the DMC1155 kit contains illustrated operating instructions for all the tooling included

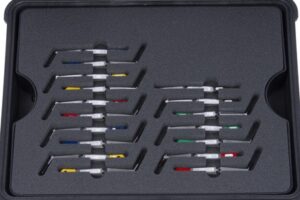

DMC1155 TOOL AND ACCESSORY LIST
5 Metal Insertion Tools
4 Metal Removal Tools
2 Metal Ins/Rem Tools
75 Plastic Ins/Rem Tools
7 Insertion Tweezer Tools
8 Removal Tweezer Tools

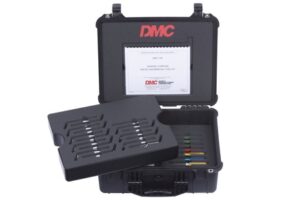

TOOL KIT CONFIGURATION
Type of Case Portable
Number of Cases 1
Color Grey
Type of Construction Steel/Aluminum
Application Contact Insertion Removal
Type of Inserts Unicellular Polyethylene Foam with Die Cut Tool Cavities
