V1470

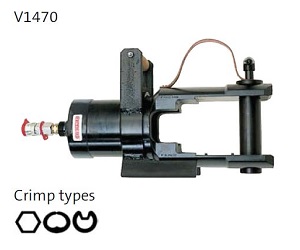

V1470 Crimp Head

SKU: V1470 Category: V1470 & Dies

Description

Description

Elpress crimp head, used together with foot pump P4000 or battery / mains powered electro hydraulic pump PS710.

Particulars:

equipped with oil spray safety protection cap
?working pressure 63 MPa (630 bar)
?crimp force 400 kN
?supplied in a solid plywood box
?weight 21.5 kg (incl box 28.5 kg)
length 510 mm, width 235 mm

V1470
