Description
Twist Strip Kit with TSK8000 & All (20) 2 & 3 Conductor Die Sets (Cable diameter range from 0.081″ to 0.180″)
Tool Specifications:
The TSK8000 accommodates a variety of multi-conductor cable having diameters from 0.0625 inches to 0.180 inches
Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed
– Interchangeable stripping dies (with cable track and carbide blade set)
– Adjustable blade depth settings
– Tool Weight: .81 lbs
– Shipping Weight: 6 lbs (includes entire tool and accessories in foam lined case)
– Die Arm Lever Force: 4.4 lbs
– Die Arm Lever Length: 1 inches
– Tool Dimensions: 1.75 inches wide, 9.75 inches tall
– Cable Max OD: < 0.180 inches / 4.75 mm – Cable Min OD: > 0.0625 inches / 1.59 mm
Tool Kit includes:
TSD2090 – TSK8000 Universal Die Set for .081″ – .090″ Cables, Qty. 1
TSD2100 – TSK8000 Universal Die Set for .091″ – .100″ Cables, Qty. 1
TSD2110 – TSK8000 Universal Die Set for .101″ – .110″ Cables, Qty. 1
TSD2120 – TSK8000 Universal Die Set for .111″ – .120″ Cables, Qty. 1
TSD2130 – TSK8000 Universal Die Set for .121″ – .130″ Cables, Qty. 1
TSD2140 – TSK8000 Universal Die Set for .131″ – .140″ Cables, Qty. 1
TSD2150 – TSK8000 Universal Die Set for .141″ – .150″ Cables, Qty. 1
TSD2160 – TSK8000 Universal Die Set for .151″ – .160″ Cables, Qty. 1
TSD2170 – TSK8000 Universal Die Set for .161″ – .170″ Cables, Qty. 1
TSD2180 – TSK8000 Universal Die Set for .171″ – .180″ Cables, Qty. 1
TSD3090 – TSK8000 Universal Die Set for .081″ – .090″ Triple Cables, Qty. 1
TSD3100 – TSK8000 Universal Die Set for .091″ – .100″ Triple Cables, Qty. 1
TSD3110 – TSK8000 Universal Die Set for .101″ – .110″ Triple Cables, Qty. 1
TSD3120 – TSK8000 Universal Die Set for .111″ – .120″ Triple Cables, Qty. 1
TSD3130 – TSK8000 Universal Die Set for .121″ – .130″ Triple Cables, Qty. 1
TSD3140 – TSK8000 Universal Die Set for .131″ – .140″ Triple Cables, Qty. 1
TSD3150 – TSK8000 Universal Die Set for .141″ – .150″ Triple Cables, Qty. 1
TSD3160 – TSK8000 Universal Die Set for .151″ – .160″ Triple Cables, Qty. 1
TSD3170 – TSK8000 Universal Die Set for .161″ – .170″ Triple Cables, Qty. 1
TSD3180 – TSK8000 Universal Die Set for .171″ – .180″ Triple Cables, Qty. 1
TSK8000 – Tool Kit Assembly, Qty. 1
TS8000 CIC Cable Diameter Gauge Card

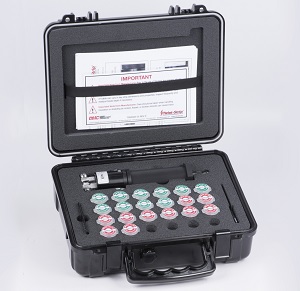

In an organized, foam lined case
