TBHD1M

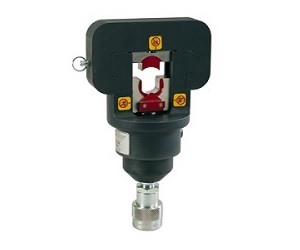

TBHD1M Remote Hydraulic Crimp Head

SKU: TBHD1M Category: TBHD1M & Dies

Description
RESOURCES

Description

The TBHD1M Remote Hydraulic Crimp Head delivers the die force necessary to crimp large conductors and is a welcome solution where hand crimping is not acceptable. The 12 tons of crimp force and accepts the HD002 (MS23002), HD485 (MS90485), HD442 (MS25442) and Boeing ST 2354 Die combinations. In some cases the tool can be used as a hand-held crimper, but the tool weight (9.6 lbs) and force means mounting it in a stationary position with a bench mount (BM-2A) is the preferred mode of operation. The recommended hydraulic pump is the versatile HPU11M air powered pump.

Other Specifications that apply to the TBHD1M are the following:

Crimp force: 12.0 tons (107kN)
Length: 10.0 inches (254 mm)
Width: 6.0 inches (152.4 mm)
Weight: 9.6 pounds (6.9 kg)

DMC offers several pump options that offer economical, efficient, reliable methods to power crimp applications requiring 10,000 psi. The powered pumps are: an AC electric pump (p/n HPU14M & HPU14M-230), and a pneumatic powered pump (p/n HPU11M). Two portable manual pumps: a hand pump (p/n HPU12M) and a foot pump (p/n HPU15M). All pumps come with a heavy duty, ten-foot long hose and couplings (equipped with screw on MS fittings and dust covers) to complete the connection between pump and crimper (p/n 12-4040).
