Description

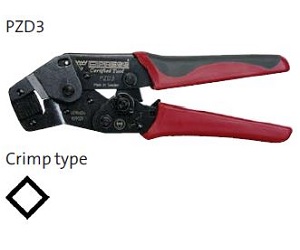

PZD3
Self-setting tool for crimping pre-insulated and un-insulated end terminals
0.5 – 6 mm? and pre-insulated TWIN end terminals 2×0.5 – 2×4 mm?.
Particulars:
- ?only one crimp nest which automatically sets to the appropriate size for the
end terminal crimped; leaves a crimp surface with shallow transversal - front feed
- crimp lengths up to 17 mm
Technical data:
- ratchet system to guarantee a fully closed crimp
- release mechanism if the crimping sequence must be interrupted
- distinctly marked die nests
- adjustable if changes occur, ie after many crimps
- tested with Elpress terminals according to DIN requirements
- ergonomically designed handles to fit all users
- optimises the crimp quality
- reduces the risk for repetitive strain injuries (RSI)
- light and handy design whitout reduction in durability
- type C has extra long handles for comfortable two-hand grip
- at least 80.000 crimps
- delivered with certificate for quality assurance
