Description

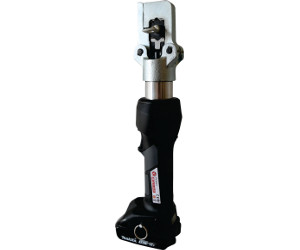

The PVX611 crimp pistol is the latest tool in the Elpress 600 series. The tool is 100% reverse compatible and has been tested and approved for use together with Elpress TB-dies and KB-dies. One new feature of the pistol is a display that gives you valuable information about your tool, e.g. number of performed crimps, battery status, service intervals, etc. The PVX611 has been created with a new ergonomic design that offers you, the user, enhanced performance. The tool is supplied with a 2-year guarantee*. There is also the possibility to set a “safety start”** on the tool.
PVX611 crimps:
– Cu-conductor type KRF/KSF 10-150 mm2, KRT 10-240 mm2, KRD 10-185 mm2
– Al-conductors 16-25 mm22
– C-sleeves 6/6-50/50 mm2
* 2-year guarantee if service/calibration is performed during the first year (or max. 10,000 cycles) at one of Elpress’s authorised service stations.
** adjustable crimping operation start with optional one or two ‘click’ trigger for safer handling of the tool.
TECHNICAL DATA:
-
- Better protection against dirt and dust ingress through tool chassis
- Ergonomic design that optimizes the balanace of the tool in the users hand
- Press fork opened by rotary action
- Crimp pressure control by electronic pressure monitoring
- Single handed grip for easy operation
- LED lighting for easier work
- ”Quick boost” for more efficient pressing
- Digital display with information about the tool and service interval
- Tested together with Elpress TB-dies and KB22/KB25-dies
- Pressure monitoring information via display when at correct
- pressure / full pressure not achieved (warning light(LED) and signal)
Supplied with 2 x 18 Volt 5 Ah Batteries and Charger.
