M81969/16-04

M81969/16-04 or 81515-23

SKU: M81969/16-04 Category: Plastic - Insertion Removal Tools

Description

Description

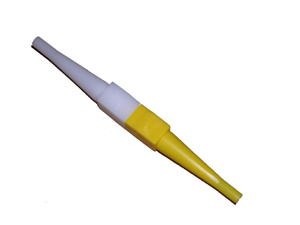

The M81969/16-04 Insertion/Removal tool is used on # 22 contacts in the following connector series

Mil-C-81511, Series 3 & 4
Mil-C-83733 All

Also known as 81515-23

Quantity discounts apply
