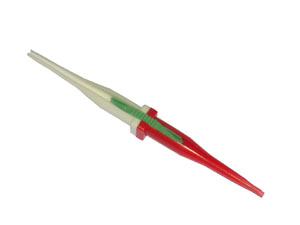

M81969/16-01

M81969/16-01 or 81515-20

SKU: M81969/16-01 Category: Plastic - Insertion Removal Tools Tag: 5120-00-132-6328

Description

Description

Also known as 81515-20

Installs & removes #20 contacts from connector series MIL-C-51511 Series 3 & 4

Quantity discounts apply

NSN: 5120-00-132-6328

M81969/16-01

Description
