HXE4C

Category: DMC NEXT-GEN

Description
RESOURCES

Description

Smart Crimping Made Simple

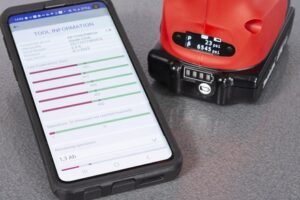

This new crimp tool from DMC® offers next-generation, high-tech features allowing you to track tool performance, users, and projects. Crimp data is viewable in real-time or can be downloaded via an app.

Bluetooth® Connectivity
Innovative LED display
Tracks Number and Quality of Crimps
Improved Housing Construction

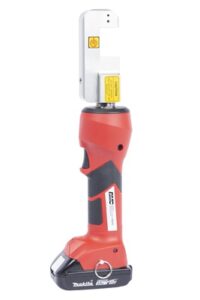

The HXE4C Battery Powered Crimp Tool is a handheld, self-contained crimp tool intended to crimp copper and aluminum cable #26 to #8 AWG with DMC “Y” Dies (M22520/5-xx and others).

Dies in various crimp patterns are also available for insulated and uninsulated terminal lugs, wire splices, and end caps relating to AS7928, MS17143, MS25036, MS25181, MS27429, MS25274, MS20659, M81824, MS21003 through MS21015, and commercial part numbers. Several power contacts too large for conventional hand tools are also covered by interchangeable dies for the HXE4C.

Hexagonal crimp dies are available in a variety of combinations having single, double, and even triple cavity design. These dies accommodate most coaxial and shielded connectors and contacts conforming to MILPRF-39012, AS39029, and numerous proprietary configurations.

The HXE4C meets the requirements of RoHS Directive 2002/95/EC.

FEATURES:
Ergonomic design allows one-handed operation
Die automatically opens when crimp is complete
Die can be retracted in mid-cycle to adjust connector
Head rotates 350 degrees
Red LED to display the current status of the unit

CRIMP CAPACITIES:
#26 to #10 AWG
Max. Crimp Force: 1.5 Tons (13.3 kN)
Avg. Crimp Time: 2 seconds
Avg. Crimps per Charge: 150

SPECIFICATIONS:

Length=15.7” (399mm)
Width=2.9” (74mm)
Depth=4.5” (114mm)
Mass/Weight (with battery)=3.95lb (1.79kg)
Sound Level=75db (A) at 1 meter
Vibration=<2.5m/s²
Hydraulic Oil=Shell Tellus® T-15

TOOL INCLUDES:
Carrying Case
Two 18v, 1.5 A Batteries
One Battery Charger

BATTERY (P/N: HDE-LI-B):
18 VDC, Lithium Ion, 1.5 AMP
Charging Time: 22 minutes
2 batteries are included with each new tool
