HX4

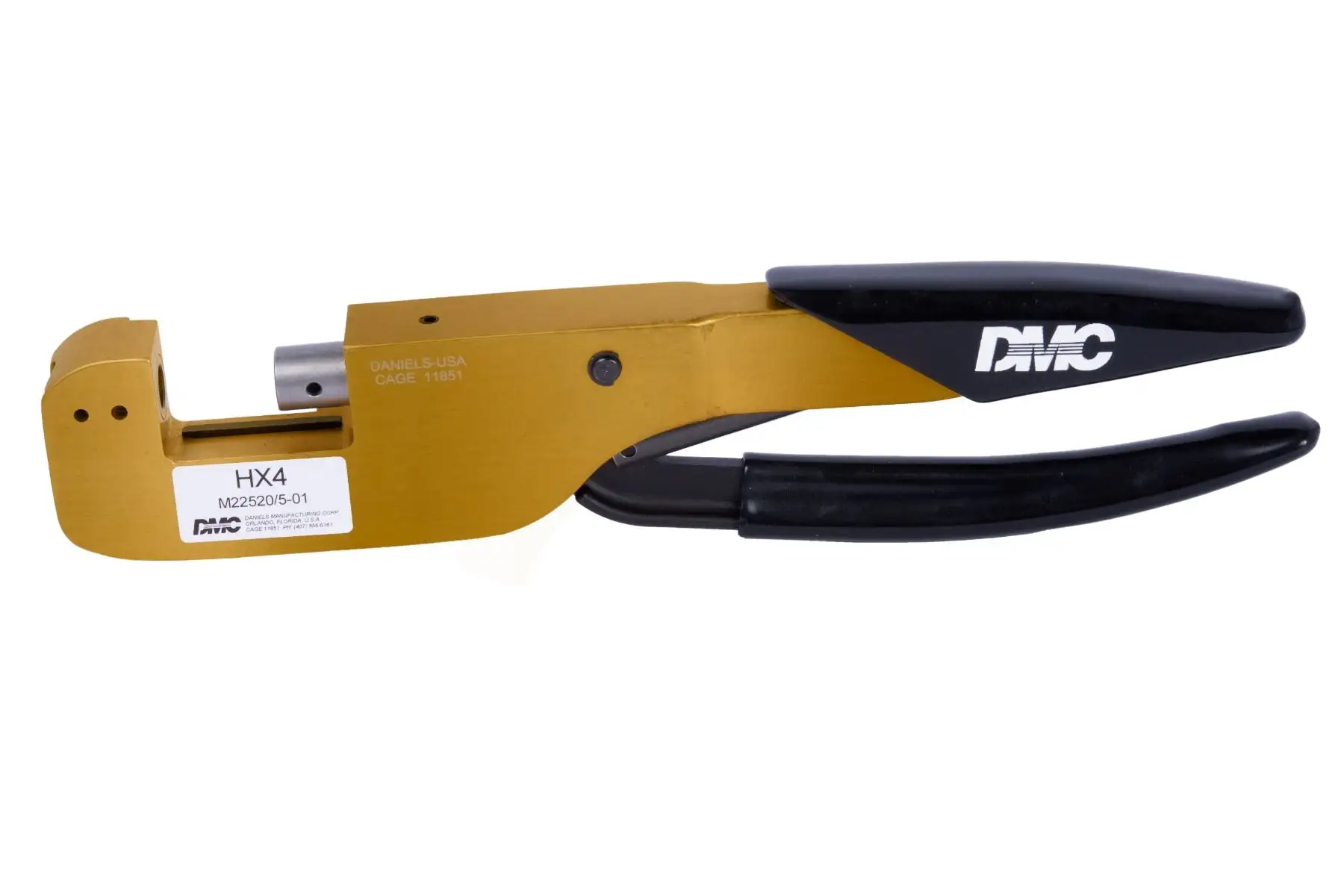

HX4 Crimp tool (M22520/5-01)

SKU: HX4 Categories: HX4 - Commercial Range, HX4 - Military Range

Description

Description

The HX4 (M22520/5-01) Open Frame crimp tool uses a series of interchangeable die sets. This eliminates the need of separate fixed die crimp tools for every different application.

The HX4 uses the “Y” series die sets.
The tool has a positive ratchet assembly which controls complete handle movement in both directions.

Due to the huge number of die sets available, please email our Sales Department (sales@crimptech.com.au) for assistance in die selection for your application.

NSN 5120-01-335-8575
