HD23

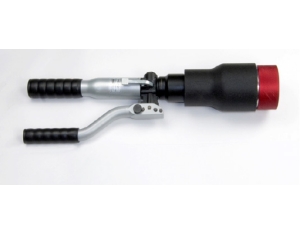

HYDRAULIC CRIMP TOOL, 4 IND LARGE GAGE

SKU: HD23 Categories: Hand Tools, HC Series, HD Series, HD23 Series

Description

Description

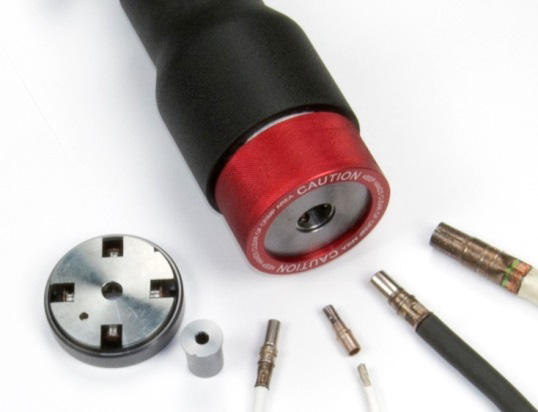

This tool uses the same Indenter Die Sets and Positioners as the M22520/23-01 Tool, (DMC Part # WA23) which are defined by the AS39029 Contact Detail Standards.
Maintainers of Aircraft Wiring Systems (EWIS) have requested a Crimp Termination System for Large Gage Contacts (#8 thru 4/0) which is self-contained and portable, and can be used in Aircraft EWIS Maintenance without the need for compressed air. This product is an answer to that request.

NOTE: In EWIS Maintenance of High Current Circuits, the M22520/23-01 Pneumatic Crimp Tool has to be lifted into the aircraft wire harness to crimp a new contact onto existing wiring. This new manual crimp tool eliminates the need for compressed air, and is lighter weight.
