HD120

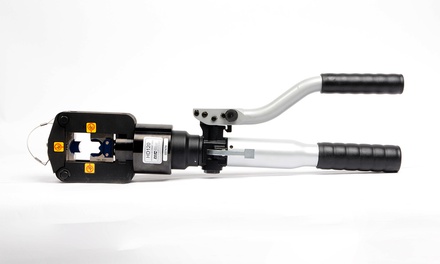

HYDRAULIC CRIMP TOOL, 12 TON

Description
RESOURCES

Description

The HD120 is a hand actuated hydraulic crimp tool designed to use interchangeable MS23002-XX dies (for insulated lugs) and MS90485-XX dies (for un-insulated lugs). It has a two stage hydraulic system with automatic pressure relief toprevent over compression, and automatic die retraction after the crimp cycle.

This tool is a hand operated hydraulic equivalent to DMC tool part number TBHD1M (MS25441-1) 12ton Hydraulic Installing Head. It accepts all dies designed for use in the TBHD1M. However this tool is NOT Mil Qualified.

The tool’s hydraulic pump is filled with biodegradable hydraulic fluid at the factory and does not need to be bled or primed.

SPECIFICATIONS:

Crimp Force: 12 tons (106kN)
Weight: 14.6lb (6.6kg)
Crimp Head: (L x W x H) 5.18in x 1.38in x 4.18in (131.6mm x 35.1mm x 106.2mm)
Overall Length : 21.3in (541mm)
Hydraulic Oil : .1pt (50ml) Biodegradable Hydraulic Fluid
Crimping Range: 8 AWG to 4/0 AWG

RESOURCES
