GS100-1

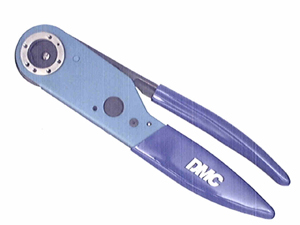

CRIMP TOOL – M22520/4-01

SKU: GS100-1 Categories: GS Series - Commercial Range, GS Series - Military Range

Description
RESOURCES

Description

CRIMP TOOL – M22520/4-01

DMC manufactures a range of circular indent crimp tools used primarily for the outer shield terminations in contacts. The design of certain shielded contacts requires two additional crimping operations. One for the shield crimp sleeve, the other for the outer body.

Qualified to AS22520/4*

Purpose: Outer Contact Size 16

NSN 5120-01-335-8576

RESOURCES

DATA SHEET

ENVELOPE

GS100-1

Description
