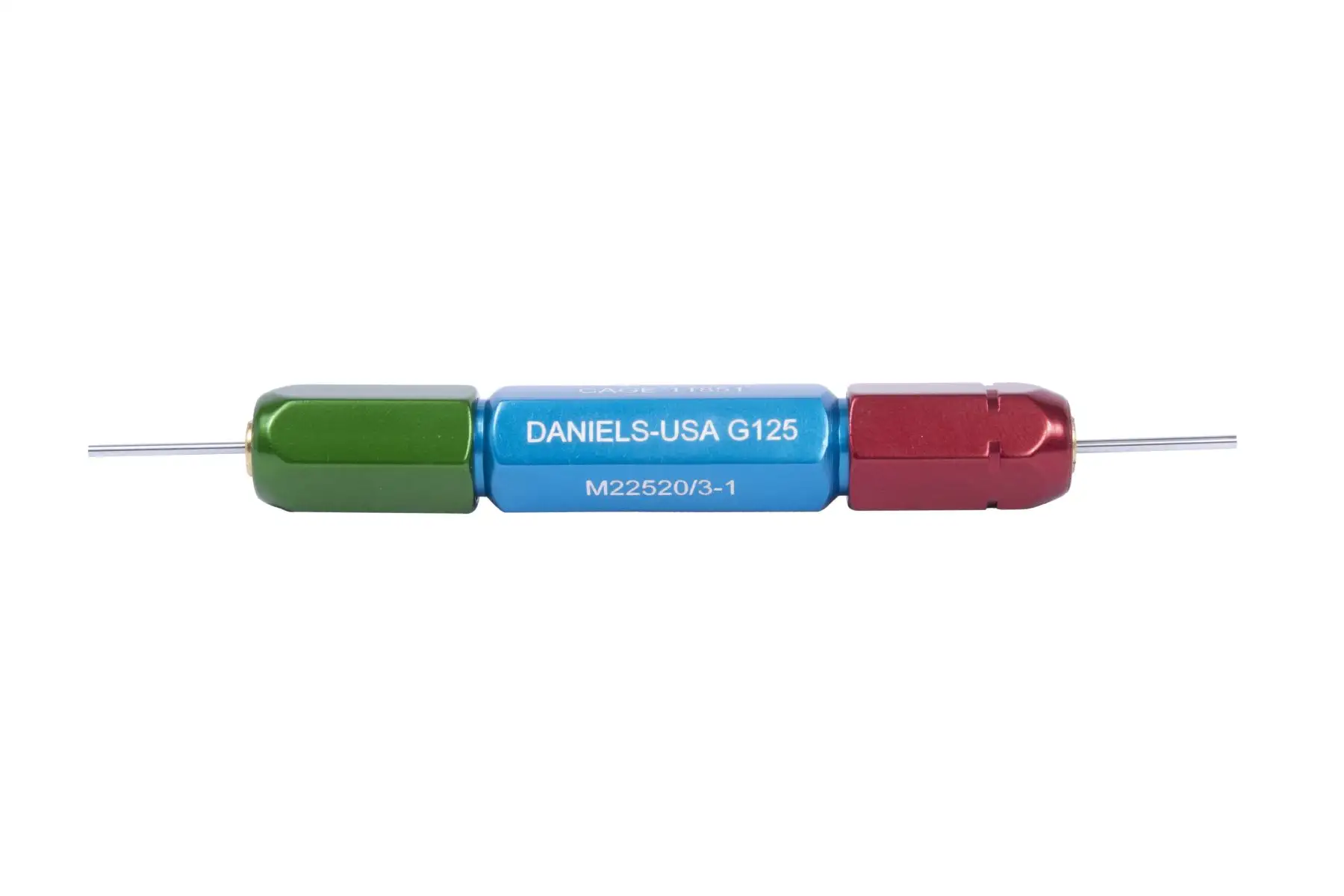

G125

GAGE GO.0390 NO-GO.044 – M22520/3-1

SKU: G125 Category: Gauges

Description

Description

The G125 (M22520/3-1) gauge is used to check calibration of both AF8 (M22520/1-01) and AFM8 (M22520/2-01) Crimp Tools

GAGE GO.0390 NO-GO.044 – M22520/3-1

NSN 5220-01-016-6002
