DRK50

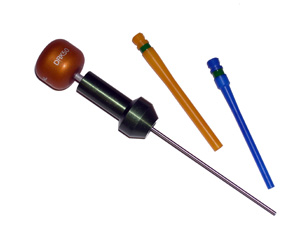

UNWIRED CONTACT REMOVAL TOOL (#12 & #16)

SKU: DRK50 Category: DMC - Unwired Removal Tools - Plastic

Description

Description

UNWIRED CONTACT REMOVAL TOOL (#12 & #16)

PLASTIC-PROBE UNWIRED CONTACT REMOVAL TOOLS
TOOL PART NUMBER	CONNECTOR SERIES	PROBE PART NUMBER	PROBE SIZE	PROBE COLOR	PROBE BAND COLOR
DRK50	AS50151, Series MS3450	DRK50-16-2	16	Blue	Green
DRK50	AS50151, Series MS3450	DRK50-12-2	12	Yellow	Green
DRK105	MIL-PRF-38999, Series 1 – 4 MIL-DTL-24308 MIL-DTL-55302/68 MIL-DTL-55302/71 MIL-DTL-55302/75 MIL-DTL-83733, (size 22D only)	DRK105-22M-2	22D/22M	Yellow	Brown
		DRK105-22-2	22	Green	Brown
		DRK105-20-2	20	Red	Brown
		DRK105-16-2	16	Blue	Brown
		DRK105-12-2	12	Yellow	Brown
DRK110	MIL-DTL-83733, (except size 22D) MIL-DTL-83723, Series 3 MIL-DTL-26482, Series 2 MIL-C-81511, (class “L” only)	DRK110-20-2	20	Red	Silver
		DRK110-16-2	16	Blue	Silver
		DRK110-12-2	12	Yellow	Silver
DRK130	MIL-C-81511, Series 3 & 4, (except class “L”)	DRK130-22-2	22	Yellow	Black
		DRK130-20-2	20	Red	Black
		DRK130-16-2	16	Blue	Black
		DRK130-12-2	12	Yellow	Black

DRK50

Description

PLASTIC-PROBE UNWIRED CONTACT REMOVAL TOOLS

TOOL PART NUMBER

CONNECTOR SERIES

PROBE PART NUMBER

PROBE SIZE

PROBE COLOR

PROBE BAND COLOR
