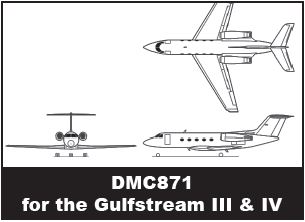

DMC871 WIRING SYSTEM SERVICE KIT?For the Gulfstream III & IV
THE MAINTENANCE PROBLEM…
Modern aircraft, such as the Gulfstream III & IV, have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools. It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal when DMC has already performed this task for the Gulfstream III & IV.
AOG TIME CONSTRAINTS.
Once the aircraft becomes inoperable because of a connector failure, it is imperative to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss due to AOG. The DMC871 kit supplies your staff with both the information and the tools necessary to make this type of repair to the Gulfstream III & IV in the shortest time possible.
THE DMC SOLUTION…
TOOLING RESEARCH.
DMC has already researched the list of connectors for the Gulfstream III & IV and has identified the most common tools required to maintain the electrical connectors in the Gulfstream III & IV. DMC has cross referenced tools to the connectors, contacts and terminals eliminating costly and time-consuming research which would otherwise have to be performed by your local technicians.
IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION.
The DMC871 kit contains the tooling to connector, contact and terminal cross reference information which indicate the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.
ALL IN ONE.

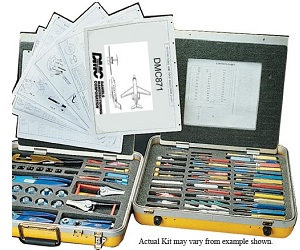

Since these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your aircraft to service. Tool kit supplied in an environmentally sealed fiberglass case and includes: Name Plate, Foam Pads/Inserts, Contents Charts, Instruction Charts, and Tool Selection Charts.
DMC871 TOOL AND ACCESSORY LIST
5 Crimp Tools
6 Turret Heads
11 Positioners
4 Single Position Heads
7 Die Sets
15 Metal Insertion Tools
18 Metal Removal Tools
47 Plastic Ins/Rem Tools
4 Contact gages
1 Inspection Gage
1 Wire Cutter
2 Wire Strippers
1 Die Removal Tool
1 Hex Wrench
3 Unwired Contact Removal Tools w/ Probes
DMC871 CONNECTOR COVERAGE
MANUFACTURER SERIES
MIL-C-5015 “3450”
MIL-C-38999 1, 2, 3, 4
MIL-C-83723 3
MIL-C-81659 2
MIL-C-81511 3 & 4
MIL-C-26482 2
MIL-T-7928 Splices & Terminals
MIL-C-39012 C & N
Matrix 944, 981, MT & MB91, MB92, MB93
AMP TNC, BNC, N & NIC-66
Aero-E AE55
Bendix PT-CE & BT-M
Collins Radio Thin Line
Deutsch 815, AFD, CTJ & DBA, DL
ITT Cannon DPXNA, DPXNE, BKAD/E/F, D*MA, FRF/FVF, FRA/FVA, DPAMA, DPXMA, CA-KE, D*M
Flight FF
Raychem Mini Seal Splice
