DMC852 WIRING SYSTEM SERVICE KIT For LEARJET 25, 35, & 55
THE MAINTENANCE PROBLEM…
Modern aircraft, such as the Learjet 25, 35 & 55, have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools. It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal when DMC has already performed this task for the Learjet 25, 35 & 55.
AOG TIME CONSTRAINTS.
Once the aircraft becomes inoperable because of a connector failure, it is imperative to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss due to AOG. The DMC852 kit supplies your staff with both the information and the tools necessary to make this type of repair to the Learjet 25, 35 & 55 in the shortest time possible.
THE DMC SOLUTION…
TOOLING RESEARCH.
DMC has already researched the list of connectors for the Learjet 25, 35 & 55 and has identified the most common tools required to maintain the electrical connectors in the above series of planes. DMC has cross referenced these tools to the connectors, contacts and terminals, eliminating costly and time-consuming research which would otherwise have to be performed by your electrical technicians.
IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION.
The DMC852 kit contains all of the tooling to connector, contact and terminal cross reference information needed to support the Learjet 25, 35 & 55. In addition, the DMC852 kit also contains illustrated operating instructions for the required tooling.
ALL IN ONE.
Since all of these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your Learjet to service.

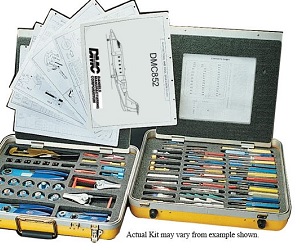

DMC852 TOOL AND ACCESSORY LIST
4 Crimp Tools
6 Turret Heads
9 Positioners
10 Die Sets
15 Metal Insertion Tools
14 Metal Removal Tools
1 Metal Ins/Rem Tool
55 Plastic Ins/Rem Tools
4 Contact gages
2 Unwired Contact Removal Tools w/ Probes
1 In-Service Inspection Gage
1 Die Removal Tool
1 Hex Wrench
1 Wire Cutter
2 Wire Strippers
DMC852 CONNECTOR COVERAGE
MANUFACTURER SERIES
AMP Multimate, Amplimite CPC, HDP-20, M Series
Burndy BT Series
Deutsch DBA70, RSM, TJ, 460 Series
Aerospace Lighting Coaxial Transformer
Amphenol 126, 165, 48 Series
ITT Cannon Cabayonet, CVA, D*C, DPXB, KPSE, KPT, PV Series
Bendix JT, LJT, PC, PT-CE, PT, PT-SE, PT-SP, PT-CE & SC-P Series
Continental MM-22 Series
Elco Mini-Varilok
Elcon BD Series
McGraw Edison Fire Detection
Micordot Marc 53 Series
Molex 03-06 Series
Panduit Pan-Term Terminals
Positronics Melo-D Series
Ted Mfg. PC Series
Walter Kidde Fire Detection
Winchester M Series
MIL-C-26482 Series 1 & 2
MIL-C-26500
MIL-C-39012 BNC, TNC Series
MIL-C-38999 Series 2
MIL-C-81790
MIL-C-83723Series 1 & 3
MIL-C-5015 3450
