DMC169A

SKU: DMC169A Category: Military Kits

Description

Description

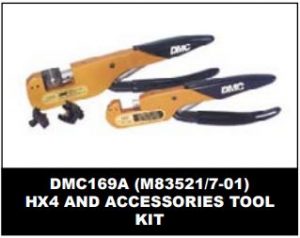

The DMC169A Tool Kit contains the HX4 (M22520/5-01) associated Die Sets for MIL-Spec shielding ferrules (MS21980/MS21981) and MIL-Spec coaxial contacts (MS39029/6/13/14, M39029/7/8, M83733/13/14 and 0N089558). The kit is supplied in a metal case with foam inserts, contoured tool cavities, laminated instruction sheets permanently attached on a ring binder, and contents charts identifying the location of each tool. The DMC169 kit supplies your staff with the information and accessories necessary to use your HX4 (M22520/5-01) tools for crimping.

DMC169A TOOL AND ACCESSORY LIST
1 Crimp Tool
27 Die Sets
1 Micrometer

DMC169A

Description

Related products
