DMC169

SKU: DMC169 Category: Military Kits

Description

Description

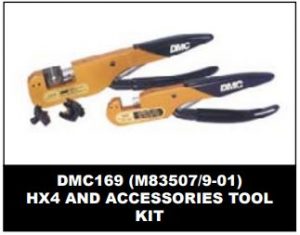

The DMC169 Tool Kit contains the HX4 (M22520/5-01) associated Die Sets for MIL-Spec shielding ferrules?(MS21980/MS21981) and MIL-Spec coaxial contacts (MS39029/6/13/14, M39029/7/8, M83733/13/14 and 0N089558). The kit is supplied in a metal case with foam inserts, contoured tool cavities, laminated instruction sheets permanently attached on a ring binder, and contents charts identifying the location of each tool. The DMC169 kit supplies your staff with the information and accessories necessary to use your HX4 (M22520/5- 01) tools for crimping.

DMC169 TOOL AND ACCESSORY LIST
1 Crimp Tool
27 Die Sets
1 Micrometer

TOOL KIT CONFIGURATION
Type of Case Portable
Number of Cases 1
Color Gray
Type of Construction Steel/Aluminum
Application M22520/5-01
Type of Inserts Unicellular Polyethylene?Foam with Die Cut Tool Cavities

DMC169

Description
