Description
DMC1278 ERJ-145 MAINTENANCE KIT?For Electrical Connectors and Wiring Systems
THE MAINTENANCE PROBLEM…
Modern aircraft, such as the ERJ-145, have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools.
It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal when DMC has already performed this task for the ERJ-145.
AOG TIME CONSTRAINTS.
Once the aircraft becomes inoperable because of a connector failure, it is imperative to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss due to AOG. The DMC1278 kit supplies your staff with both the information and the tools necessary to make this type of repair to the ERJ-145 in the shortest time possible.
THE DMC SOLUTION…
TOOLING RESEARCH.
DMC has already researched the list of connectors for the ERJ-145 and has identified the most common tools required to maintain the electrical connectors in the ERJ-145. DMC has cross referenced these tools to the connectors, contacts and terminals, eliminating costly and time-consuming research which would otherwise have to be performed by your electrical technicians.
IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION.
The DMC1278 kit contains all of the tooling to connector, contact and terminal cross reference information needed to support the ERJ-145. In addition, the DMC1278 kit also contains illustrated operating instructions for the required tooling.
ALL IN ONE.
Since all of these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your ERJ-145 to service.
DMC1278 TOOL AND ACCESSORY LIST
7?Crimp Tools
2 Turret Heads
8 Positioners
2 Single Position Heads
1 Universal Positioner
1 Universal Head
8 Metal Insertion Tools
9 Metal Removal Tools
70 Plastic Ins/Rem Tools
4 Contact gages
2 Unwired Contact Removal Tools w/ Probes
1 Wire Cutter
2 Wire Strippers
2 In-Service Inspection Gage
1 Die Removal Tool
3 Die Sets
1 Hex Wrench
DMC1278 CONNECTOR COVERAGE
MANUFACTURER?SERIES
AMP Mate-N-Lock Series
Amphenol/Bendix JT Series
Burndy MB Series
ITT Cannon BKAD, DPXB, DPX2MA, DPX2NE
Radiall DSX
MIL-C-24308 Rectangular Rack and Panel
MIL-C-26482 Series 2, Circular
MIL-C-38999 Series 1, 2, 3, Circular
MIL-C-5015 Series 3450, Circular
MIL-C-81659?Series 2, Rectangular
MIL-C-83723 Series 3, Circular
MIL-C-81824 Environmental Splices
MIL-T-7928 Insulated & Uninsulated Terminals

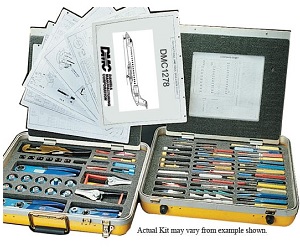

TOOL KIT CONFIGURATION
Type of Case:?Portable
Number of Cases:?1
Color:?Yellow
Type of Construction:?Aluminum
Application:?ERJ-145
Coverage:?Airframe Power Connectors, Terminals size 12 AWG and Smaller,?Coaxial Connectors
Type of Inserts:?Unicellular Polyethylene Foam with Die Cut Tool Cavities
