DMC1119

AF8 & AFM8 with Mil-Spec Turrets, Single Position Heads, and Positioners

SKU: DMC1119 Category: Custom Kits

Description
RESOURCES

Description

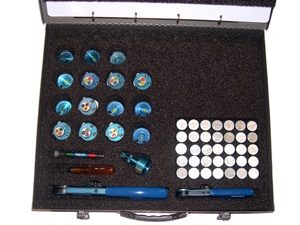

The DMC1119 Tool Kit contains the AF8 (M22520/1-01) and AFM8 (M22520/2-01) with all associated Mil-Spec Turrets, Single Position Heads, and Positioners. The kit is supplied in a metal case with foam inserts, contoured tool cavities, laminated instruction sheets permanently attached on a ring binder, and contents charts identifying the location of each tool.

DMC1119

AF8/AFM8 AND ACCESSORIES

TOOL KIT
The DMC1119 kit supplies your staff with the information and accessories necessary to use your AF8 (M22520/1-01) and AFM8 (M22520/2-01) tools for crimping size 32 to 12
AWG electrical contacts.

DMC1119 TOOL AND ACCESSORY LIST
2 Crimp Tool
7 Turret Heads
8 Single Position Heads
1 Universal Turret Head
36 Positioners
1 Tool Gage
1 9/64 Hex Wrench

Actual Kit may vary from example shown.

TOOL KIT CONFIGURATION
Type of Case – Portable
Number of Cases – 1
Color – Gray
Type of Construction – Steel/Aluminum
Application – M22520/1-01 & M22520/2-01
Type of Inserts – Unicellular Polyethylene Foam with Die Cut Tool Cavities
