DMC1007-28R

.022”, .032” and .040” Safe-T-Cable Applications

SKU: DMC-1007-28R Categories: Kits, Safe-T-Cable Kits

Description
RESOURCES

Description

Safe-T-Cable^© Tool & Parts Kits

Complete Tool & Parts Kits to support your Safe-T-Cable^© applications.

DMC is well known through out the aerospace industry for the quality and capability of the Tool Kits that we manufacture. The packaging materials (case, inset, and instructions) are manufactured to specifically meet the most demanding handling conditions.

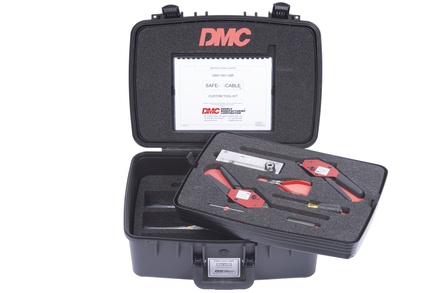

FOD (Foreign Object Damage) is always a concern when workers are required to use tools and small components in or around an aircraft. The DMC Safe-T-Cable^© kits are designed to minimize that concern. The “shadowing” principal is a proven concept for tool/parts control. Safe-T-Cable^© Tool and Parts Kits are available in a variety of configurations to support your specific requirements. Out most requested Tool & Parts Kit is the DMC1000-4R (pictured) due to the popularity of .032 diameter Safe-T-Cable^©, and the demand for a travel-ready system whereby the user has Tools, Verification Equipment, Accessories, a supply of Cable/Ferrules, and the Instructions all in one package.

You will find the most popular selections listed below. Other Kits are available to support your particular needs.

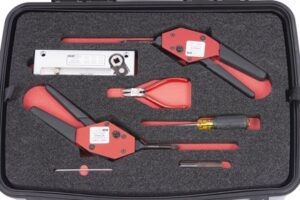

		DMC1007-28R – Master Kit .022, .032, & .040 Safe-T-Cable^© Tool and Parts Kit
PART NUMBER	QUANTITY	DESCRIPTION
SCTR203	1	Safe-T-Cable^© Tool with 30 Nose Attached (.022)
SCTR323	1	Safe-T-Cable^© Tool with 3″ Nose Attached (.032)
SCTR403	1	Safe-T-Cable^© Tool with 3″ Nose Attached (.040)
SCTN20-7	1	7″ Nose Assembly (.022)
SCTN32-7	1	7″ Nose Assembly (.032)
SCTN32-7	1	7″ Nose Assembly (.040)
SCT-TB1	1	Torque Verification Block
SCT32084	1	Spanner Tool
SDD440	1	Screwdriver
4-1501	1	9/640 Hex Wrench
45-6N	1	Diagonal Cutter/Gripper
C10-118	100	Safe-T-Cable^© (.022 x 180)
C10-118JA	50	Self-Looping Safe-T-Cable^© (.022)
C10-218	100	Safe-T-Cable^© (.032)
C10-218JA	50	Self-Looping Safe-T-Cable^© (.032)
C10-318	100	Safe-T-Cable^© (.040)
C10-318JA	50	Self-Looping Safe-T-Cable^© (.040)
F10-04	50	Elongated Ferrules (.032)
F10-07	50	Elongated Ferrules (.040)
F10-08	50	Elongated Ferrules (.022)
