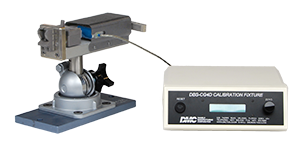

DBS-CG4D

Electronic Calibration Instrument

SKU: DBS-CG4D Category: Calibration Equipment

Description

Description

DMC also offers an Electronic Calibration Instrument for Calibration Laboratory operations.

The DBS-CG4D Electronic Calibration Instrument will allow the operator to gage the exact tension produced by the tool, and therefore, one instrument can be used with either the .250 band width tool, or the .125 band width tool. This instrument is calibrated by DMC, and traceable to NIST.

Use verification equipment in accordance with DMC instructions DBS-CG7-DS, DBS-CG8-DS or DBS-CG4D-DS.
