DBS-2200

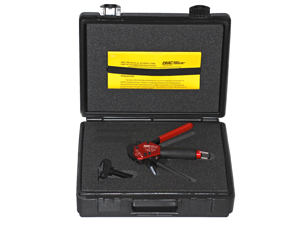

SINGLE STEP 1/8″ BANDING TOOL-M81306/1B

SKU: DBS-2200 Category: Hand Tools

Description

Description

EMI/RFI Band Application System for M85049/128 Shield Termination Bands.

ONE-STEP BAND APPLICATION TOOLS:
The One-Step Band Application Tool DBS-2100 is built to SAE AS81306/1 specifications and designed to install M85049/128-7, and M85049/128-8 “stamped buckle” bands. These tools are constructed to survive the demands of production and maintenance use, and remain precisely adjusted to provide a quality band termination.

The tension-lock system gives the operator a positive indication when the precise tension has been applied. The cut-off handle easily cuts, bends, and locks the shield band in one step.

DBS-2200 .125 Wide Mini-Band Application Tool M81306/1B:

• Size and Weight: 6.71” x 6.75” x .92”
• Weight: 1.02 lbs.
• Tension Range: 75–85 lbs.
• Cut-off blade is replaceable with Blade Replacement Kit: DBS-2200-BRK

Field Verification Inspection Gages are available to check the tension of the DMC One-Step Band Tools. These gages have a precise compression mechanism which has a sequence of indicators to verify that the applied tension is within the specified range for the band which is being applied. It is recommended to check the tension periodically, and if it needs adjustment, the instructions and accessories are provided by DMC for that purpose. The .125 width band tool (DBS-2200 Series) requires the DBS-CG8 (M81306/1D) gage.

DMC also offers an Electronic Calibration Instrument for Calibration Laboratory operations. The Part Number DBS-CG4D Electronic Calibration Instrument will allow the operator to gage the exact tension produced by the tool, and therefore, one instrument can be used with either the .250 band width tool, or the .125 band width tool. This instrument is calibrated by DMC, and traceable to NIST.

SINGLE STEP 1/8″ BANDING TOOL-M81306/1B
