PT-150HA

Alphatron Manual Pull Tester with 150 lb. Load Cell

SKU: PT-150HA Category: Alphatron Tensile Testers

Description
RESOURCES

Description

THE ALPHATRON™ PT-150HA WIRE CRIMP PULL TESTER

It’s only natural that the company which supplies the best wire termination tools and equipment would add the very best Digital Wire Crimp Pull Testers to further meet the demand for fewer sources and improved support through a wider range of user needs. The AlphatronTM PT-150HA Wire Crimp Pull Tester from DMC is one in a line of AlphatronTM Electronic Tensile Test Systems which may be used in conjunction with SPC Programs or other Quality Control disciplines in both OEM and maintenance applications. The rugged construction and the portable design of the the PT-150HA make it a superior choice for on-site or laboratory use in an infinite variety of applications. The electronic digital readout display is a fast and reliable source of test data. The operation of the PT-150HA is simple yet versatile, and DMC will customize the gripping jaws or other components to make test sample installation and removal an easy task. The PT-150HA Manual Wire Crimp Pull Tester is ideal for testing crimp strength up to size 10 for Mil-Spec applications,* and size 4 AWG for commercial and automotive applications.**

STANDARD FEATURES
• Capacity: 150 lbf, 667 N, 68 Kgf
• User chageable display units (pounds force, newtons or Kgf)
• Resolution: 0.1 lb, 0.1 N, 0.1 Kg
• Accuracy: ± 0.5 % of full scale

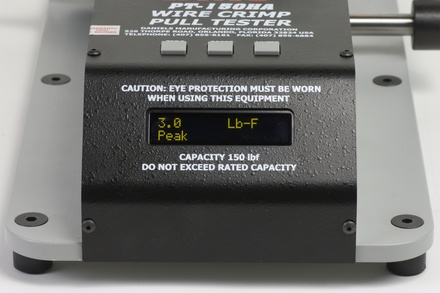

• Digital Display with Peak Hold
• Backlit LCD Display with 0.56” High Digits

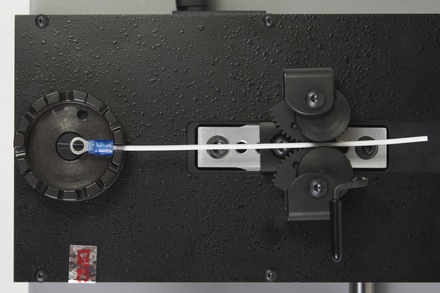

• Self-Tightening Wire Grip (P/N 15-3202C)
• 15 Position Slotted Terminal Contact Grip (P/N 15-3087)
• Manual Lever Arm Pull Mechanism
• Input power: 100-240 VAC 50/60 Hz

OPTIONAL ACCESSORY GRIPS
• Ring Terminal Grip (P/N 15-0066)
• Right Angle Terminal Grip (P/N 15-3042)
• Locking Ring Terminal Lower Group (P/N 15-3242)
PHYSICAL
• Weight 15.2 Lbs.
• (Shipping Weight 21 Lbs.)
• Stand Dimensions: H. 5”, W. 8.5”, D. 16”

CALIBRATION
• Supplied with certificate of calibration traceable to NIST
• Factory calibration available

OPTIONAL FEATURES
• Custom grips available

* Size 10 MIL Spec wire pull test is typically 150 pounds force. Sample may not break at 150 pounds.
** May require special grips due to wire diameter.
