CINCH MIL-C-26500 / BACC (OMEGA) CONNECTORS

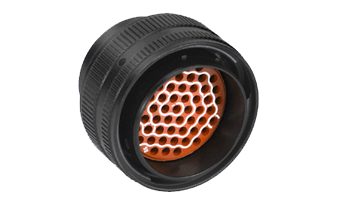

The C48 Series (MIL-C-26500/BACC 45 & 63), or Omega, connectors are qualified to MIL-C-26500. This series was expanded to offer qualifications to many Boeing specs for general-purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance, and vibration. Included are products that meet Boeing high performance requirements and solutions for alternate termination styles/low-profile packaging.

Part number variants include these prefixes: Boeing callouts BACC45 & BACC63, MIL callout MS2426X, and Cinch commercial callout C48, C0909A, CN0966B, CN0966A, CN0967C, CN1020A AND CN1021A.

MIL-C-26500/BACC (OMEGA) CREATE P/N

BACC 45FS & BACC 45FM CREATE P/N

BACC 45FN & 45FT CREATE P/N
