MIL-SPEC CONNECTORS FOR TOUGH APPLICATIONS

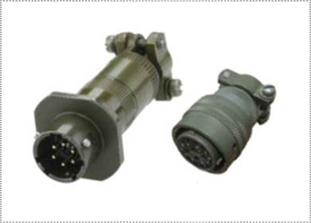

CINCH MIL-DTL-26482 Series I connectors are excellent interconnect options for the demands of the aerospace, military, industrial and transportation industries. This series comes in both solder or crimp options, and connectors are available in 9 shell sizes and over 30 insert arrangements with both pin or socket contacts. Included in the U.S. Government’s Qualified Products List (QPL), they are qualified to MIL-DTL-26482 Series I standard. For mating, shells are held together by 3 bayonet pins on receptacles and bayonet locking couplings or plugs, and they are provided with 5 keyways to ensure proper alignment.

CINCH PW Series Catalogue

CINCH PWF Series Catalogue
