HIGH-PERFORMANCE ALTERNATIVE TO OLDER MIL-DTL-5015 SOLDER TYPES

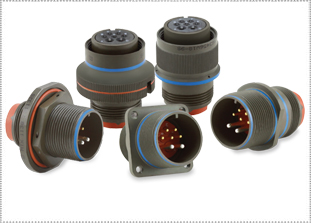

The Amphenol MS3450 MIL-DTL-5015 Rear-Release Threaded (Matrix^®) series connectors use rear-release crimp contacts with a retention clip. These Amphenol MS3450 connectors fill the gap between older MIL-DTL-5015s and the environmental and higher-performance needs of new technologies. These MS3450 connectors are sealed to withstand moisture, condensation, vibration and flash-over. Over 165 contact layouts are available, in variations that allow for just power, just signal, or a mix of both contact types. These were formerly MIL-C-5015.

AMPHENOL MS3450 SERIES FEATURES

- Broad Operating Temperatures
  The electroless nickel plating and stainless steel shell connectors will operate in temperature ranges from -67°F to 392°F (-55°C to 200°C). The cadmium olive drab plating connectors will operate in temperatures ranging from -75°F to +347°F (-55°C to 175°C).

- Environmental
  These connectors will perform in the full range of operating conditions defined in MIL-DTL-5015 and are recommended for conditions where vibration, moisture, pressure, and/or temperatures are extreme.

- Rugged Shell
  The rugged aluminum alloy or stainless steel shells are highly resistant to damage and corrosion with firewall capabilities. Shells are available in four different styles, like a self-locking coupling nut in seventeen different sizes.

- Wide Range of Wire Gauges and Current-Carrying Capacity
  Up to 150/245 amps for standard military contacts and wire gauges from size 20 to size 0 AWG.

Amphenol MS3450 Connectors Catalogue
